Lifecycle
- Obsolete Date 31-01-2023
- End of support date 31-01-2028
Specifications
- Cable length 3m
- Minimum dimensions ( H x W x D) 28.5 x 48.49 x 22.99 cm
- Weight 0.45 kg
- Product dimensions (H x W x D) 11.22 x 19.09 x 9.05 in
- Weight 1 lb

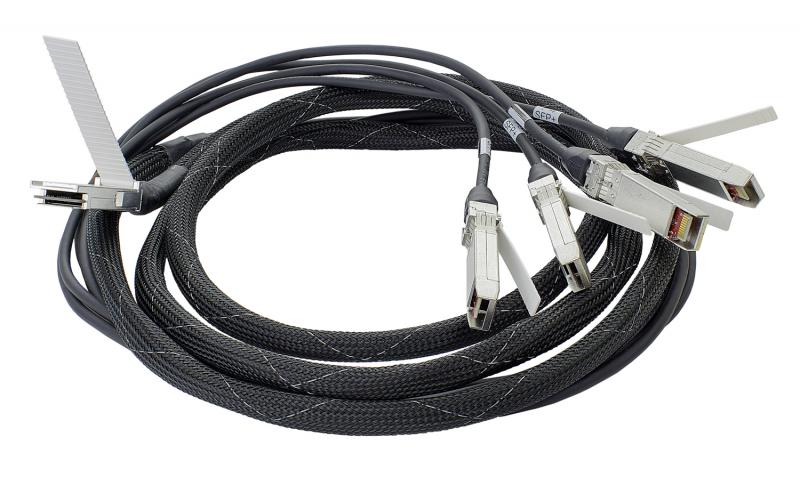

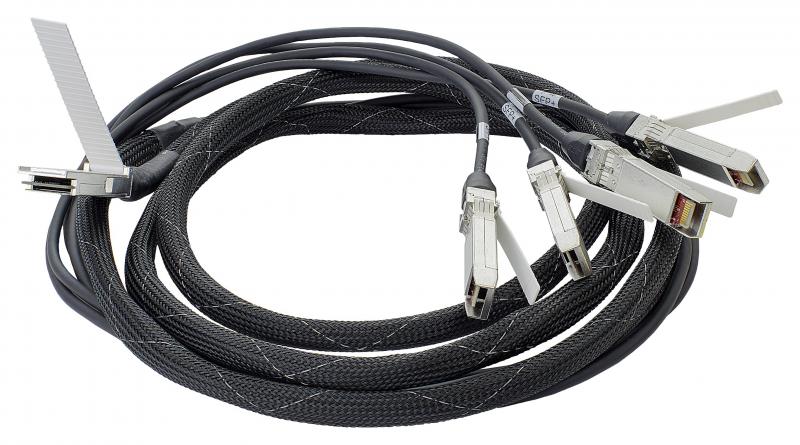

- Transceiver form factor QSFP+ transceiver at one end and 4 SFP+ transceivers at the other end of the cable
- Cable type Direct Attach Splitter Cable
- Crosstalk 26dB max
- Time delay 1.32 nsec/ft
- Minimum cable bend radius SFP+ end: 0.7" QSFP+ end: 1.78"
- Cable diameter 0.175" for each SFP+ fan out cable
Overview
The HPE Direct Attach Cables provide connections to meet the exponential data growth in data centers and cloud-based services.
Features
Affordable and Reliable
HPE Direct Attach Cables offers a cost-effective alternative to fiber optics.
SFF-8665 compliant.
RoHS compliant.
Compatible products
- HPE SN2700M 100GbE 32QSFP28 Switch
- HPE SN2410M 25GbE 48SFP28 8QSFP28 Swch
- HPE StoreFabric SN2100M 100GbE 16QSFP28 Half Width Switch
- HPE StoreFabric SN2100M 100GbE 8QSFP28 Half Width Switch
- HPE StoreFabric SN2700M 100GbE 16QSFP28 Switch
- HPE StoreFabric SN2410M 25GbE 24SFP28 4QSFP28 Switch
- HPE StoreFabric SN2410bM 10GbE 48SFP+ 8QSFP28 Switch
- HPE StoreFabric SN2410bM 10GbE 24SFP+ 4QSFP28 Switch
